UartCommunication Class Reference

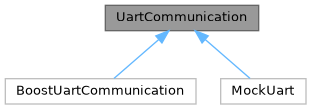

Inheritance diagram for UartCommunication:

Public Types
enum	FlushType { flush_receive = TCIFLUSH , flush_send = TCOFLUSH , flush_both = TCIOFLUSH }

Public Member Functions
	UartCommunication (const UartCommunication &)=delete
UartCommunication &	operator= (const UartCommunication &)=delete
virtual bool	serialWrite (const std::vector< unsigned char > &write_val)=0
virtual std::vector< unsigned char >	serialRead (size_t num_read_bytes)=0
virtual bool	flushSerialPort (FlushType flush_type)=0

Member Function Documentation

flushSerialPort()

virtual bool flushSerialPort ( FlushType  flush_type )

pure virtual

Flushes serial port data

Parameters

flush_type

enum that sets the data to be flushed (read, write, or both)

Returns

true upon success, false otherwise

Implemented in BoostUartCommunication.

serialRead()

virtual std::vector< unsigned char > serialRead ( size_t  num_read_bytes )

pure virtual

reads a given number of bytes from UART receive buffer

Parameters

num_read_bytes

the number of bytes to read

Returns

the values read

Implemented in BoostUartCommunication.

serialWrite()

virtual bool serialWrite ( const std::vector< unsigned char > &  write_val )

pure virtual

writes write_val into UART transmit buffer

Parameters

write_val

values to be written

Returns

true upon success, false otherwise

Implemented in BoostUartCommunication.

---

The documentation for this class was generated from the following file:

• src/software/uart/uart_communication.h
