ObserverSubjectAdapter< ObserverType, SubjectType > Class Template Reference

#include <observer_subject_adapter.hpp>

Inheritance diagram for ObserverSubjectAdapter< ObserverType, SubjectType >:

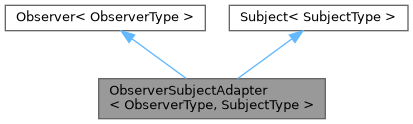

Collaboration diagram for ObserverSubjectAdapter< ObserverType, SubjectType >:

Public Types
using	ConversionFunctionType = SubjectType(const ObserverType &)

Public Member Functions
	ObserverSubjectAdapter (std::function< ConversionFunctionType > conversion_function_)
virtual void	receiveValue (ObserverType val) final
Public Member Functions inherited from Observer< ObserverType >
	Observer (size_t buffer_size=DEFAULT_BUFFER_SIZE, bool log_buffer_full=true)
virtual void	receiveValue (ObserverType val)
virtual double	getDataReceivedPerSecond () final
Public Member Functions inherited from Subject< SubjectType >
void	registerObserver (std::shared_ptr< Observer< SubjectType > > observer)

Additional Inherited Members
Static Public Attributes inherited from Observer< ObserverType >
static constexpr size_t	TIME_BUFFER_SIZE
Protected Member Functions inherited from Observer< ObserverType >
virtual std::optional< ObserverType >	popMostRecentlyReceivedValue (Duration max_wait_time) final
virtual std::optional< ObserverType >	popLeastRecentlyReceivedValue (Duration max_wait_time) final
Protected Member Functions inherited from Subject< SubjectType >
virtual void	sendValueToObservers (SubjectType val) final
Static Protected Attributes inherited from Observer< ObserverType >
static constexpr size_t	DEFAULT_BUFFER_SIZE

Detailed Description

template<typename ObserverType, typename SubjectType>
class ObserverSubjectAdapter< ObserverType, SubjectType >

ObserverSubjectAdapter is a class made to "adapt" a type emitted by a Subject to a different type consumed by an Observer with a conversion function passed in the constructor.

Based on the Adapter design pattern described here: https://refactoring.guru/design-patterns/adapter

Template Parameters

ObserverType	The type that this class observes, i.e. converted-from type
SubjectType	The type that this class is a subject of, i.e. converted-to type

Constructor & Destructor Documentation

ObserverSubjectAdapter()

template<typename ObserverType , typename SubjectType >

ObserverSubjectAdapter ( std::function< ConversionFunctionType >  conversion_function_ )

inlineexplicit

Constructs an ObserverSubjectAdapter with the given conversion function that consumes a const-ref of the observed type and returns the subject type.

Parameters

conversion_function_

A function that converts ObserverType to SubjectType.

Member Function Documentation

receiveValue()

template<typename ObserverType , typename SubjectType >

void receiveValue ( ObserverType  val )

finalvirtual

Receives a value, calls the conversion function on it, and sends it to the Observers of this object.

Parameters

val

a value

---

The documentation for this class was generated from the following file:

• src/software/multithreading/observer_subject_adapter.hpp
